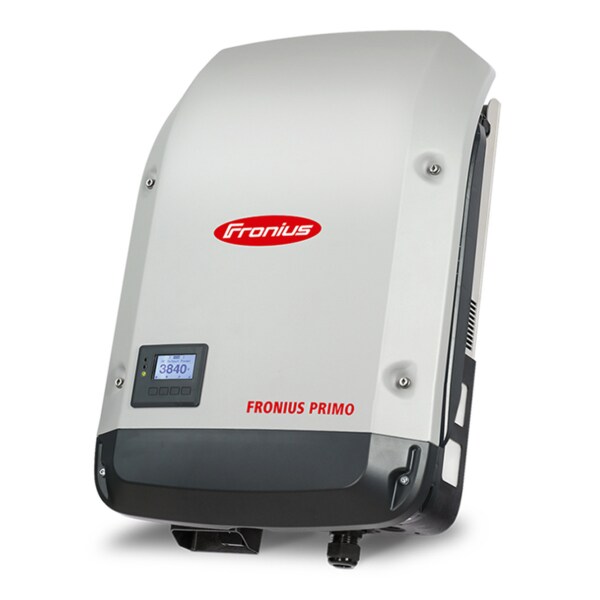

Fronius Primo 208-240 V 6.6-12.7 kW Single Phase String Inverter

The Fronius Primo inverter series has been specially developed for the demands of the North American market. With power categories from 3.8 to 15 kW, the single-phase, transformerless device is the perfect inverter for private households. Its innovative SuperFlex Design provides maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance as easy as possible. The communication package included as standard, with WLAN, energy management, several interfaces and much more besides, makes the Fronius Primo a communicative inverter for home owners. Standard equipment also includes a built-in arc detector (AFCI = Arc Fault Circuit Interrupter), in keeping with all other North American SnapINverters. With power categories ranging from 3.8 kW to 15.0 kW, the transformerless Fronius Primo is the ideal compact single-phase inverter for residential applications. The sleek design is equipped with the SnapINverter hinge mounting system, which allows for lightweight, secure, and convenient installation. The Fronius Primo has several integrated features that set it apart from competitors including dual power point trackers, high system voltage, a wide input voltage range, Wi-Fi and SunSpec Modbus interface, as well as Fronius' online and mobile monitoring platform Fronius Solar. Web.

Feature Bullets

• PC board replacement process
• SnapINverter mounting system
• Wi-Fi® interface
• Design Flexibility
• SnapINverter technology - The SnapINverter generation of inverters features a simple, standardized mounting system, making installation and maintenance easier than ever. A special feature in the design of the device is that the connection area is separate from the power stage set compartment, with both being installed separately. The remarkably light connection area and all its cabling is fitted to the wall first, followed by the power stage set. The innovative hinged system makes installation and servicing extremely user-friendly. The inverter is simply placed in the wall bracket and then secured. This means that it is not necessary to remove the entire inverter for servicing, just the power stage set. All the cabling remains in place
• Integrated data communication - We are the first inverter manufacturer to offer a data communication package with fully integrated datalogging, WLAN, Ethernet, energy management, web server and a range of interfaces. The inverter is connected to the internet by network cable or WLAN - without additional cabling - and grants you the perfect overview of how the PV system is operating. Connection to third-party components is provided by means of interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON). The open interfaces can also be operated in parallel to the Fronius Solar. Web
• SuperFlex Design - The Fronius SuperFlex Design is an ingenious combination of technical performance attributes that make designing your PV system not only extremely simple, but also incredibly flexible. The key performance factors of the SuperFlex Design are two MPP trackers, together with a high system voltage and wide DC input voltage range. Every DC input, and therefore every MPP tracker, is able to accommodate the entire nominal output of the inverter. Regardless of whether the inverter has to cope with different roof orientations, shading of one or two strings, or the use of residual modules: a Fronius inverter featuring integrated SuperFlex Design will satisfy every conceivable operational PV system planning scenario using just a single inverter model
• Smart Grid Ready - Fronius inverters are ready for the Smart Grid of tomorrow. The inverters are optimally equipped to meet the technical requirements of grids in the future. A series of smart functions, known as Advanced Grid Features, are built into the devices. They include a number of control functions for optimum feed-in of reactive power and effective power. These functions are designed to enable stable grid operation even when the PV system density is very high and to prevent unwanted interruptions to feed-in and associated yield losses if grid parameters exceed the thresholds. Fronius inverters therefore help to guarantee the yield of a PV system. Furthermore, where feed-in limits are imposed, Fronius inverters can provide dynamic feed-in control with self-consumption taken into account. Just connect the meter and set the feed-in limit
• Arc Fault Circuit Interruption Integrated - The Fronius Arc Fault Circuit Interruption (AFCI) makes each inverter NEC 2011 compliant and maintains some of the most civilized, integrated technology available today. Ensuring the utmost safety, AFCI shuts down the inverter in the event of an arc fault
• Active Cooling - Active cooling technology relies on one or more fans, which not only avoid hot spots, but also regulate the air circulation inside the inverter, thus keeping the temperature of the power electronics low. This has a positive effect on the service life of the devices, optimizes yields and reduces costs. At Fronius, active cooling is supplied as standard in all devices
• USB (A socket) - Datalogging and inverter update possible via USB, 2x RS422 (RJ45 socket) - Fronius Solar Net, interface protocol, Wi-fi/Ethernet LAN - Wireless standard 802.1 1 b/g/n/Fronius Solar. Web, SunSpec Modbus TCP, JSON, Datalogger and Webserver included, Serial RS485 - SunSpec Modbus RTU or meter connection, 6 inputs or 4 digital inputs/outputs - Load management; signaling, multipurpose I/O
• Admissible conductor size DC - AWG 14 - AWG 6 copper (solid/stranded/fine stranded) (AWG 10 copper or AWG 8 aluminum for overcurrent protective devices up to 60 A, from 61 to 100 A minimum AWG 8 for copper or AWG 6 aluminum has to be used), AWG 6 - AWG 2 copper (solid/stranded) Multi Contact Wiring able with AWG 12
• Admissible conductor size AC - AWG 14 - AWG 6

Specifications:

Width: 16.9 in
Height: 24.7 in
Depth: 8.1 in
Recommended PV Power (kWp): 6.6-12.7 kW
Maximum Usable Input Current (MPPT 1/MPPT 2): 18 A/18 A
Maximum Usable Input Current (MPPT 1+MPPT 2): 36 A
Maximum Array Short-Circuit Current (1.5 lmax) (MPPT1/MPPT2): 27/27 A
Nominal Input Voltage: 420 V
Operating Voltage: 80-600 V
DC Startup Voltage: 80 V
MPP Voltage Range: 270-480 V
Maximum Input Voltage: 600 V
Number of MPPT: 2
Maximum Output Power: 7900 VA at 208 V/8200 VA at 240 V
Output Configuration: 208/240 V
Frequency Range (Adjustable): 45-55 Hz/50-66 Hz
Operating Frequency Range Default for CAL Setups: 58.5-60.5 Hz
Operating Frequency Range Default for HI Setups: 57-60.5 Hz
Nominal Operating Frequency: 60 Hz
Total Harmonic Distortion (THD): <5%
Power Factor Range: 0.85-1 Ind/Cap
Maximum Continues Output Current: 38 A at 208 V/34.2 A at 240 V
OCPD/AC Breaker Size: 50 A at 208 V, 45 A at 240 V
Maximum Efficiency: 97%
CEC Efficiency: 96.5%
Enclosure Rating: NEMA 4X
Night Time Consumption: <1 W
Inverter Topology: Transformerless
Cooling: Variable Speed Fan
Installation: Indoor & Outdoor
Operating Temperature: -40 to 131 deg F
Humidity: 0-100%
Elevation: 4000 m
DC Connection Terminals: 4x DC+ & 4x DC- Screw Terminals for Copper (Solid/Stranded/Fine Stranded) or Aluminum (Solid/Stranded)
AC Connection Terminals: Screw Terminals 12-6 AWG
DC Reverse Polarity Protection: Yes
Anti Islanding: Internal, In Accordance with UL 1741-2016-09, IEEE 1547-2003 & NEC 2017
Over Temperature Protection: Output Power Derating/Active Cooling
AFCI: Yes
Rapid Shutdown Complaint: Yes
Ground Fault Protection with Isolation Monitor Interrupter: Yes
DC Disconnect: Yes
Interfaces: USB (A Socket), 2x RS422 (RJ45 Socket), Wi-Fi/Ethernet LAN, Datalogger & Webserver, Serial RS485, 6 Inputs or 4 Digital Inputs/Outputs
Standards: UL 1741-2010 Second Edition (Incl. UL1741 Supplement SA 2016-09 for California Rule 21), UL1998 (for functions: AFCI, RCMU & Isolation Monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 - 2013
Warranty: 10 Years
Weight: 47.29 lb
