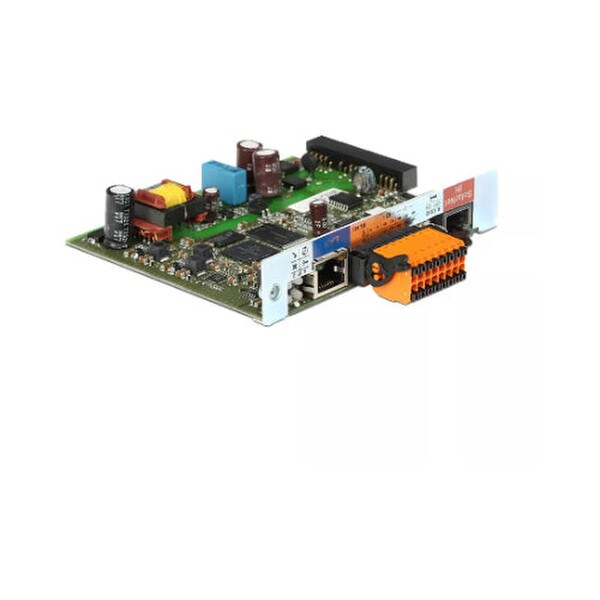

Fronius, Datamanager 2.0 WLAN plug-in card

The Fronius Datamanager 2.0 is the next generation in data monitoring and communications hardware. Whenever it is connected to the internet via Ethernet or Wi-Fi®, the Fronius Datamanager 2.0 sends the PV system values directly to the Fronius Solar.web online portal. This provides you with an overview of how the system is operating at all times. The Fronius Datamanager 2.0 enables inverters to be connected directly to the internet via Wi-Fi® for a seamless experience. The system and the Fronius Datamanager 2.0 configuration are monitored via the dedicated website on the integrated web server of Fronius Datamanager. The integrated SunSpec Modbus RTU, SunSpec Modbus TCP and Fronius Solar API (JSON, for "real-time" values) interfaces allow Fronius inverters to be seamlessly linked to third-party systems and run in parallel with Fronius Solar.web for the most effective data monitoring possible.

Feature Bullets

• Professional Visualization - With the online portal Fronius Solar.web
• Easy installation with the commissioning wizard app via tablet or smart phone for the provisioning, configuration process and registration on the Fronius Solar.web online portal
• Universal data communication as the Fronius Datamanager 2.0 provides connectivity with Solar.web in parallel to third party systems

Specifications:

Length: 132 mm
Width: 103 mm
Height: 22 mm
Memory Capacity: Up to 4096 Days
Voltage Rating: 12 Vdc
Power Consumption: <2 W
Temperature Rating: -4 to 149 deg F
Interface: Ethernet RJ45, IEEE 802.11b/g/n Client WLAN
Suitable For Use With: SnapINverters
Standards: UL Listed
