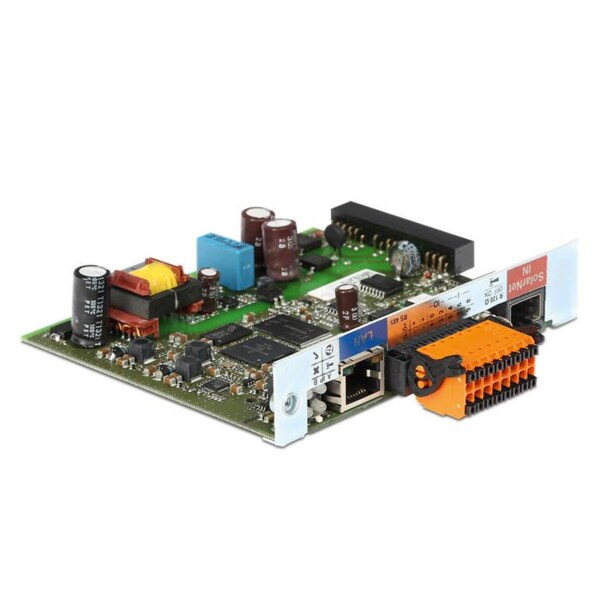

Fronius Datamanager 2.0 COM Card & Data Logger for Galvo, Symo & Primo Inverters

The new Fronius Datamanager 2.0 is the next generation in data monitoring and communications hardware. Whenever it is connected to the internet via Ethernet or Wi-Fi®, the Fronius Datamanager 2.0 sends the PV system values directly to the Fronius Solar.web online portal. This provides you with an overview of how the system is operating at all times. The Fronius Datamanager 2.0 enables inverters to be connected directly to the internet via Wi-Fi®. The system and the Fronius Datamanager 2.0 configuration are monitored via the dedicated website on the integrated web server of Fronius Datamanager.

Feature Bullets

• The integrated SunSpec Modbus RTU, SunSpec Modbus TCP and Fronius Solar API (JSON, for real-time values) interfaces allow Fronius inverters to be seamlessly linked to third-party systems and run in parallel with Fronius Solar.web for the most effective data monitoring possible
• Easy installation with the commissioning wizard app via tablet or smart phone for the provisioning, configuration process and registration on the Fronius Solar.web online portal
• Universal data communication as the Fronius Datamanager 2.0 provides connectivity with Solar.web in parallel to third party systems
• Professional visualization with the online portal Fronius Solar.web

Specifications:

Storage Capacity: Max 4096 Days
Supply Voltage: 12 VDC (Supplied by Inverter)
Energy Consumption: <2 W
Dimensions: 5.51 in x 3.98 in SnapINverter
Operating Temperature: -4 to 149 deg F
Ethernet: LAN, 10/100 MBit/Fronius Solar.web, SunSpec Modbus TCP, Fronius Solar API (JSON)
RS422 (RJ45 socket): Fronius Solar.Net IN
Wi-Fi: Wireless standard 802.11 b/g/n/Fronius Solar.web, SunSpec Modbus TCP, Fronius Solar API (JSON)
6 Digital Input + 4 Digital I/Os: Load Management, Signaling, Multipurpose I/O
RS485: SunSpec Modbus RTU or Meter Connection
Standards: UL Listed, FCC, IEEE, cCSAus Certified
Weight: 1 lb
Warranty: Limited
Application: Galvo, Symo & Primo Inverters
