FranklinWH Apower AC battery with Built-In Advanced Inverter

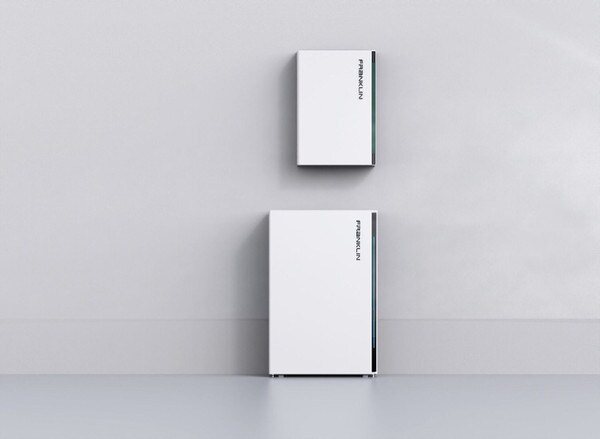

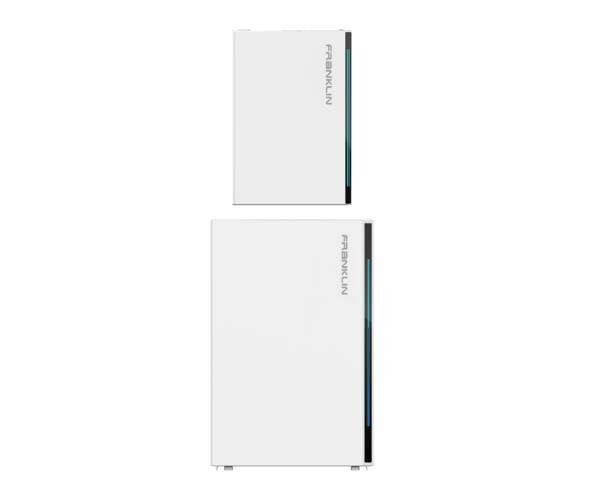

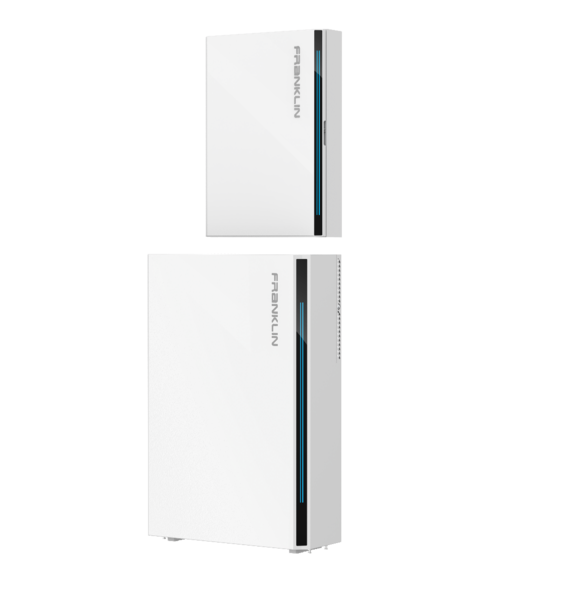

Designed to meet homeowners' future needs today, Franklin Home Power goes well beyond the demand for safe, reliable back-up. Our powerful performance stems from integrating the highest AC battery capacity with the industry's most intelligent controls. a. aPower is the AC battery with built-in advanced inverter. b. aGate is the energy management device connecting the grid, the loads, the generator and the solar system. c. FranklinWH App allows for seamless monitoring of your whole home energy.

Feature Bullets

• Reliable - Exceeds performance standards, backed by 12-year warranty
• Scalable - Highest system density allows up to 15 units for 204 kWh1
• Hassle-Free - Remote monitoring and user-friendly app limits O&M
• Flexible - Technology-agnostic system can be used with any solar inverter
• Simplified - Pre-assembled for fast, easy one-step installation

Specifications:

Dimensions: 45.3 in Length x 29.5 in Width x 11.4 in Height
Battery Chemistry: Lithium Iron Phosphate (LFP) - (AC Battery)
Usable System Energy: 13.6 kWh Per Unit, Scalability up to 15 Units - (AC Battery)
Aggregate Throughput: 43 MWh - (AC Battery)
Communication: Ethernet/4G/Wi-Fi - (AC Battery)
Nominal AC Voltage: 120/240 V, 60 Hz - (AC Battery)
Maximum Continuous/Peak Discharge Power (10 s): 5/10 kW - (AC Battery)
Maximum Supply Fault Current: 20 kA - (AC Battery)
Switch Over Time (Grid to Micro-Grid): <16 ms - (AC Battery)
Round Trip Efficiency: 89% - (AC Battery)
Inverter Topology: Isolated - (AC Battery)
Noise Emission (Optimal): <30 dB (A) - (AC Battery)
User Interface: FranklinWH Application - (AC Battery)
aPower Protection Device: 90 A Maximum
Solar Input Protection Device: 80 A Maximum
Generator Over Current Protection Device (Optional): 200 A Max
Smart Circuits Protection Device (Optional): Opt. a 1 x 80 A Maximum at 240 V & 1 x 50 A Maximum at 240 V, Opt. b 1 x 80 A Maximum at 240 V & 2 x 50 A Maximum at 120 V
Coupling: AC Coupled
Feed-In Phase: Split Phase
Connection Support: L1/L2/N/PE
Work Modes: Self-Consumption, Load Shifting, Backup Standby, Emergency Backup
Operating Temperature: -4 to 122 deg F
Operating Humidity: Up to 100% Condensing
Enclosure Rating: IP67 7 (Battery & Power Converter System) IP56 (Wiring Compartment), NEMA Type 3R
Storage Condition: 14-113 deg F
Environment Rating: Indoor or Outdoor Rated

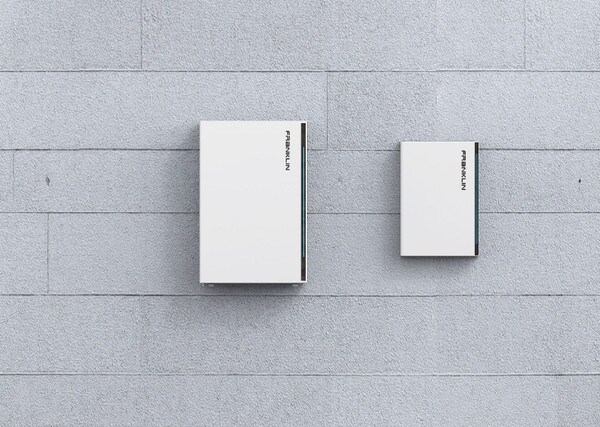

Installation: Wall Mount of Floor Mount
Standards: aPower X: UL1973, UL9540, UL9540A, UN38.3, UL1741, IEEE1547, IEEE1547.1, UL1741 SA, aGate X: UL1741 PCS, UL67, UL869A, UL916, Seismic: ACI56, IEE693-2005 (High), Environmental: California Proposition 65, RoHS Directive 2011/EU, Emissions: FCC Part 15 Class B, ICES 003
Warranty: 12 Years
Weight: 408 lb
