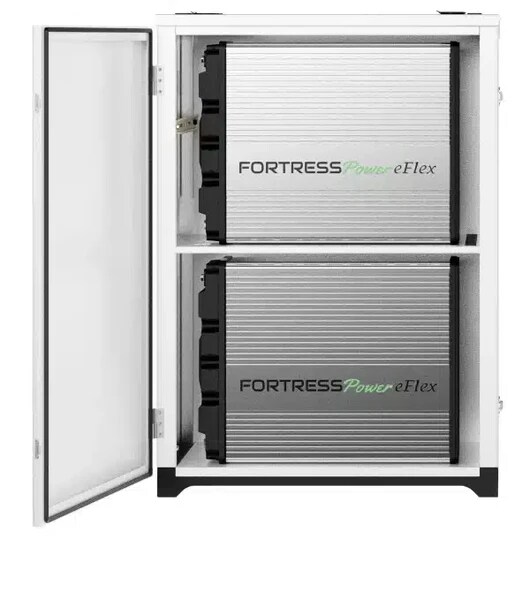

Fortress Durarack Outdoor Enclosure for eFlex Battery Storage

Expand your energy storage with the Fortress Power DuraRack. This iron enclosure stores up to 4 eFlex 5.4 kWh batteries, and is expandable up to 4 units (15 eFlex batteries, 81KWh). The DuraRack includes integrated busbars and a DIN rail heater mount. This enclosure can be free-standing or pad mounted and is safe for indoor and outdoor installations.

Feature Bullets

• IP65 water and dust resistant for both indoor and outdoor install
• Includes integrated busbars and battery cables for easy stacking
• Easy to add din rail thermostat for cold climates
• Passive cooling vent for warm climates
• Expandable up to 4 units (15 eflex batteries; total 81 kwh)

Specifications:

Enclosure Material: Carbon Steel
Protection: IP65
Color: White
Dimensions: 41.34 in Height x 29.29 in Width x 18.03 in Depth
Maximum Battery Unit: 4 eFlex 5.4
Storage Capacity Range: 5.4-21.6 kWh per unit, 81 kWh (4 Unites in Parallel)
Knockout Size: 1 in & 2 in
Positive & Negative Battery Busbars: 2 x 4 Points, M8 (5/16) Terminal Rings
Positive & Negative Busbars to Inverter: 2 Points, M10 (3/8) Terminal Rings
Battery Cables: 4 Set
Torque Rating: 7-7.7 Nm
Standards: UL9540, UL9540A, UL1973, CEC, SGIP
Warranty: 3 Years
Weight: 153.2 lb
Application: eFlex 5.4 kWh Lithium Batteries Storage
