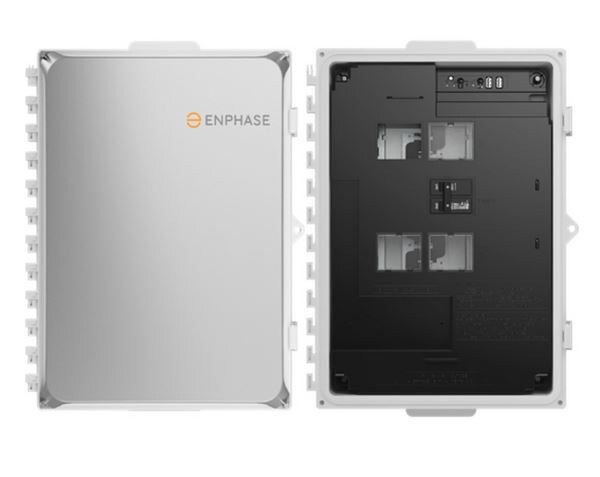

Enphase Energy Polycarbonate 120/240 Vac IQ Combiner 4 with Envoy

The Enphase IQ Combiner 4/4C with Enphase IQ Gateway and integrated LTE-M1 cell modem (included only with IQ Combiner 4C) consolidates interconnection equipment into a single enclosure and streamlines IQ microinverters and storage installations by providing a consistent, pre-wired solution for residential applications. It offers up to four 2-pole input circuits and Eaton BR series busbar assembly

Feature Bullets

• Includes IQ Gateway for communication and control
• Includes Enphase Mobile Connect cellular modem (CELLMODEM-M1-06-SP-05), included only with IQ Combiner 4C
• Includes solar shield to match Enphase IQ Battery aesthetics and deflect heat
• Flexible networking supports Wi-Fi, ethernet or cellular
• Centered mounting brackets support single stud mounting
• Supports bottom, back and side conduit entry
• Up to four 2-pole branch circuits for 240 VAC plug-in breakers
• 80A total PV or storage branch circuits
• Durable NRTL-certified NEMA type 3R enclosure
• Five-year limited warranty

Specifications:

Material: Polycarbonate
Voltage Rating: 120/240 Vac
Eaton BR Series Busbar Rating: 125 A
Maximum Continuous Amperage: 65 A
Output Circuits: 90 A
Maximum Total Branch Circuit Breaker Rating (Input): 80 A
Ambient Temperature: -40 to 115 deg F
Ethernet: Optional, 802.3, Cat5E (or Cat 6) UTP
Enclosure Rating/IP Rating: Outdoor, NRTL-certified, NEMA 3R
Breaker Input Wire: 14-4 AWG
Breaker Branch Input: 4-1/0 AWG
Main Lug Combined Output Wire: 10-2/0 AWG
Neutral and Ground Wire: 14-1/0 AWG
Cooling Type: Natural Convection, Plus Heat Shield
Integrated Wi-Fi: 802.11 b/g/n
Conductor Type: Copper
