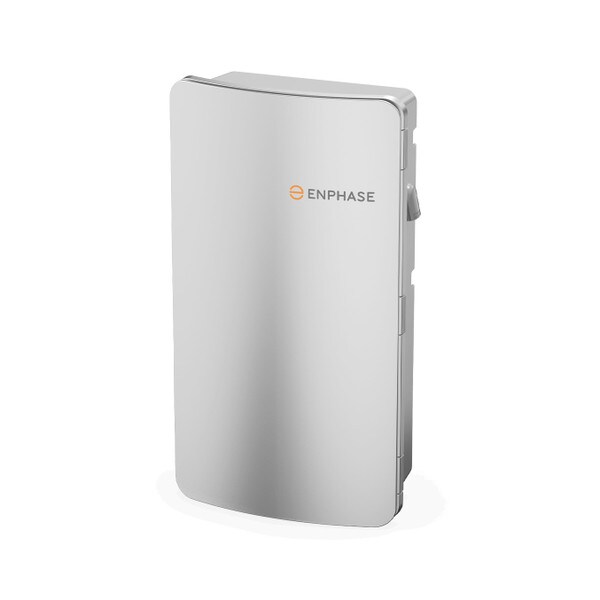

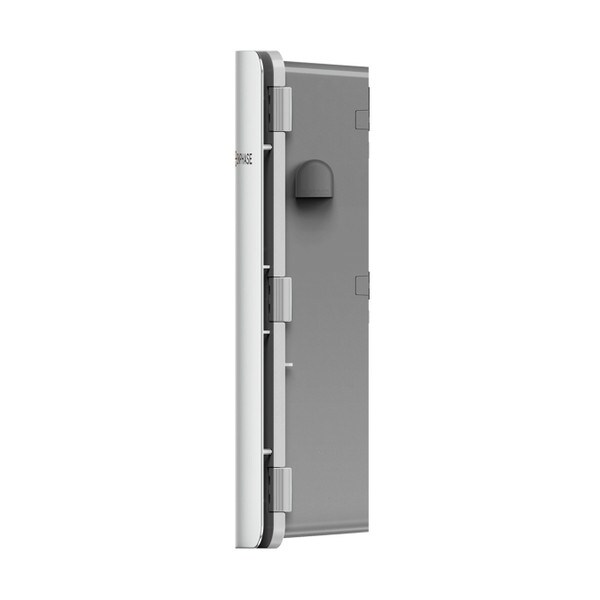

Enphase Energy 240 Vac 160 A IQ System Controller 3

The Enphase IQ System Controller 3 connects the home to grid power, IQ Batteries, and solar PV with Microinverters. Use IQ System Controller 3 for all new installs using IQ8 Series Microinverters. IQ System Controller 3 provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV, storage by providing a consistent, pre-wired solution for residential applications.

Feature Bullets

• 10-Year limited warranty
• Controls safe connectivity to the grid
• Automatically detects grid outages
• Provides seamless transition to backup
• Uses control cable for wired communication, integrates hold-down functionality to eliminate the need for hold-down kits and special breakers
• Connects to the load or service equipment side of the main load panel
• Centered mounting brackets support single-stud mounting, when paired with a dedicated IQ Load Controller, homeowners have the ability to prioritize and direct power to critical loads in the event of a grid outage
• Supports conduit entry from the bottom, bottom left and bottom right, system shutdown switch to disconnect PV, battery, and generator systems
• Enables backup for solar and solar + battery configurations
• Includes neutral-forming transformer for split phase 120/240 V backup operation

Specifications:

Nominal Voltage: 240 Vac
Maximum Continuous Amperage: 160 A
Breaker Support: 200 A
Suitable For Use With: IQ8 Series Microinverters
Includes: IQ System Controller with Neutral-Forming Transformer (NFT) & Microgrid Interconnect Device (MID)
