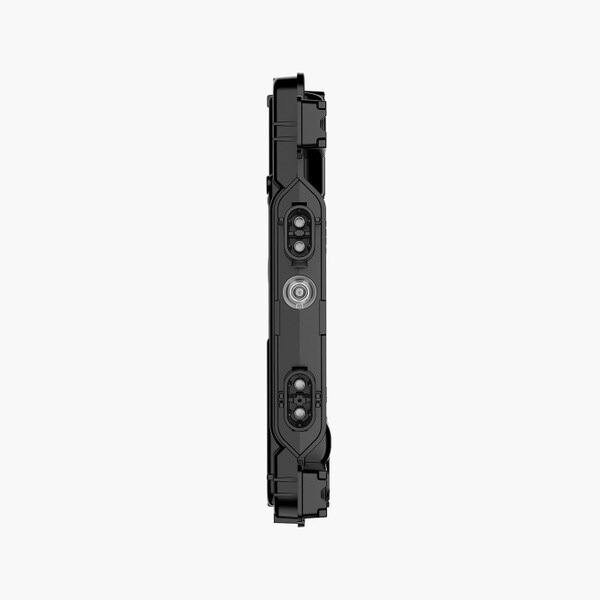

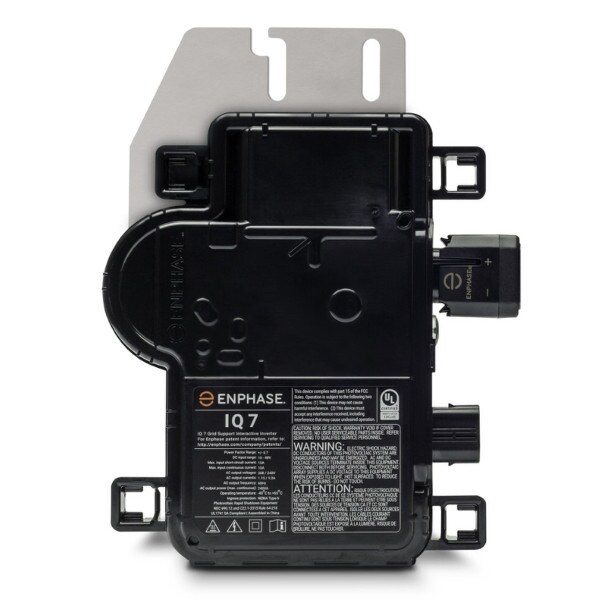

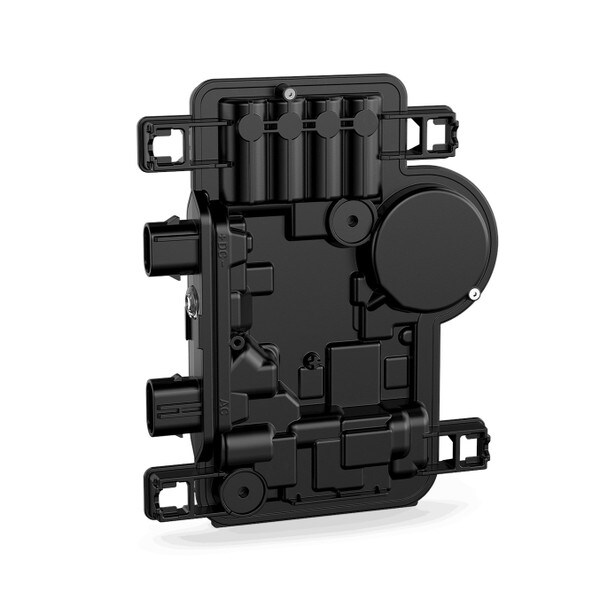

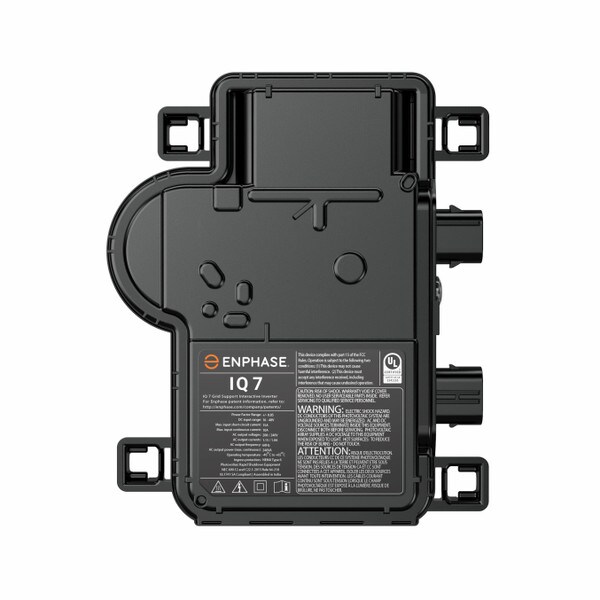

Enphase IQ7-60-2-US Microinverter - 240VAC

The high-powered Enphase IQ7 Microinverter dramatically simplifies the installation process while achieving high system efficiency. Part of the Enphase Energy System, the IQ7 Microinverter integrates with the IQ Battery, the IQ Gateway, and the Enphase App. The IQ Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading limited warranty of up to 25 years.

Feature Bullets

• 97% CEC efficiency
• Faster installation with improved, lighter two-wire cabling
• Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
• Complies with advanced grid support, voltage, and frequency ride-through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for variable grid profiles
• More than a million hours of testing

Specifications:

Series: IQ7
Overall Length: 212 mm
Overall Width: 172 mm
Overall Depth: 30 mm
Input Voltage: 16-48 V
Power Rating: 250 VA
Input Current: 10 A
Amperage Rating: 1/1.21 A
Efficiency: 97.6%
Frequency Rating: 60 Hz
Power Factor: 1
Cooling Type: Natural Convection
Temperature Rating: -40 to 65 deg F
Output Voltage: 240/211-264, 208/183-229 V
Connection Type: Q-DCC
