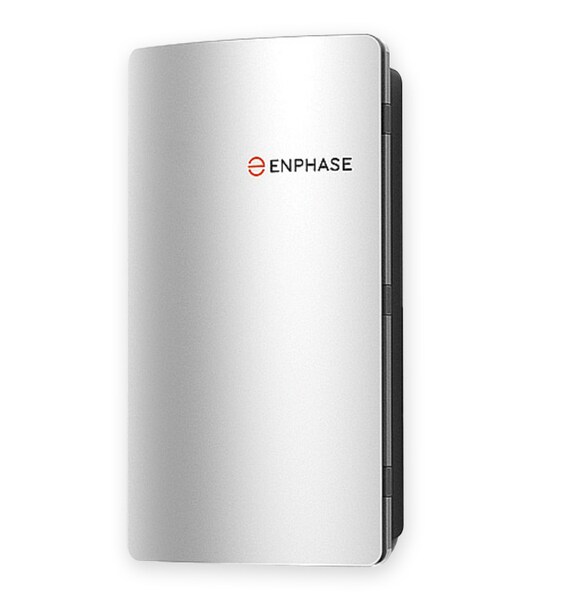

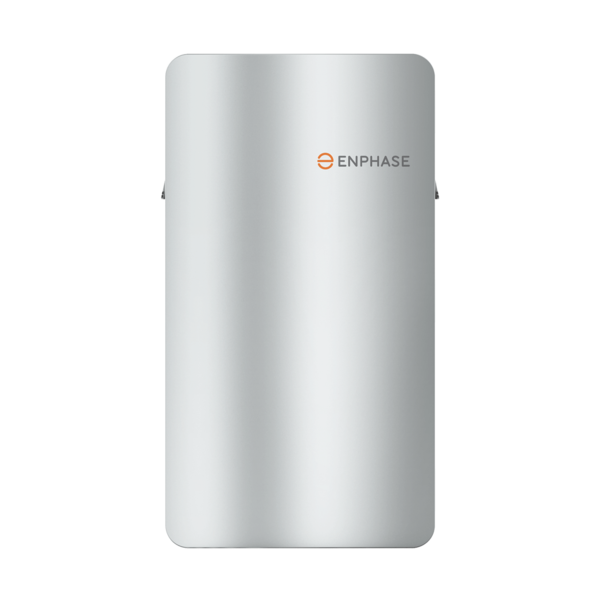

Enphase Enpower Smart Switch IQ System Controller

The IQ System Controller connects the home to grid power, the IQ Battery system, and solar PV. It provides microgrid interconnect device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV and storage installations by providing a consistent, pre-wired solution for residential applications.

Feature Bullets

• Controls safe connectivity to the grid
• Automatically detects grid outages
• Provides a seamless transition to backup
• Connects to the load or service equipment side of the main load panel

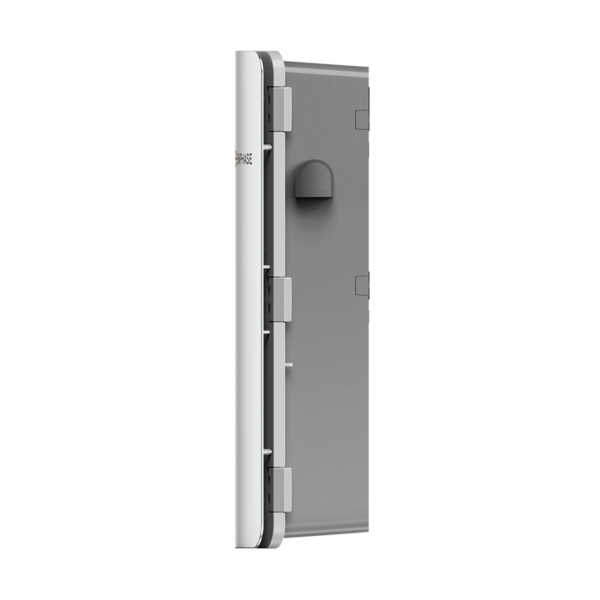

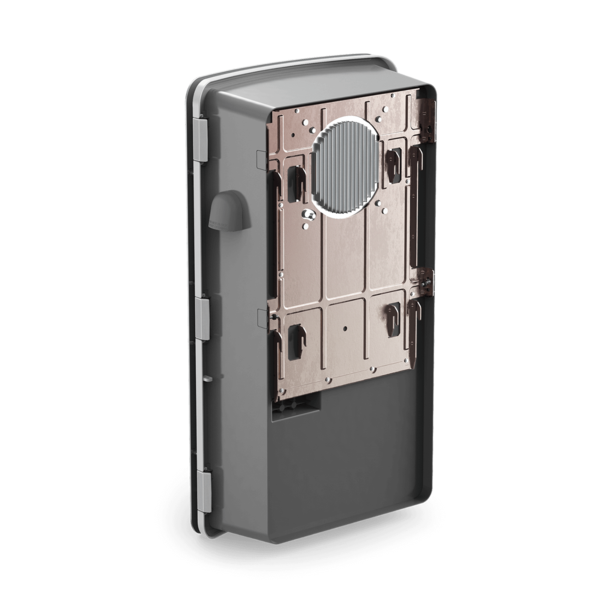

• Centered mounting brackets support single-stud mounting
• Supports conduit entry from the bottom, bottom left side, and bottom right side
• Supports whole home and partial home backup
• Includes neutral-forming transformer for split phase 120/240 V backup operation

Specifications:

Nominal Voltage Rating: 240/100-310 VAC
Voltage Measurement Accuracy: +/-1% V Nominal (+/-1.2V L-N & +/-2.4V L-L)
Auxiliary (Dry) Contact: 24 V, 1 A
Nominal Frequency: 60/56-63 Hz
Frequency Measurement Accuracy: +/-0.1 Hz
Maximum Continuous Current Rating: 160 A
Maximum Input Overcurrent Protection Device: 200 A
Maximum Output Overcurrent Protection Device: 200 A
Maximum Overcurrent Protection Device Rating for Storage Circuit: 80 A
Maximum Overcurrent Protection Device Rating for PV Combiner Unit: 80 A
Internal Busbar Rating: 200 A
NFT Breaker Rating (Pre-Installed): 40 A Between L1 & Neutral, 40 A Between L2 & Neutral
NFT Continuous Rated Power: 3600 VA
Maximum Continuous Unbalance Current: 30 A at 120 V
Peak Unbalanced Current: 80 A at 120 V
Peak Rated Power: 8800 VA for 30 sec
Ambient Temperature Rating: -40 to 50 deg C
Cooling: Natural Convection Solar Shield
Enclosure Rating: Outdoor, NEMA 3R
Construction Material: Polycarbonate
Altitude: Up to 2500 m
Connection: Main Lugs & Backup Load Lugs - Cu/Al 1 AWG - 300 KCMIL, CSR Breakers - Cu/Al 2 AWG - 300 KCMIL, BR Breakers (Wire Provided) - 6 AWG, AC Combiner Lugs, IQ Battery Lugs, & Generator lugs - 14-2 AWG, Neutral Lugs - Cu/Al 6 AWG - 300 KCMIL, Neutral & Ground Bars - Large holes (5/16-24 UNF) 14-1/0 AWG, Small Holes (10-32 UNF) 14-6 AWG

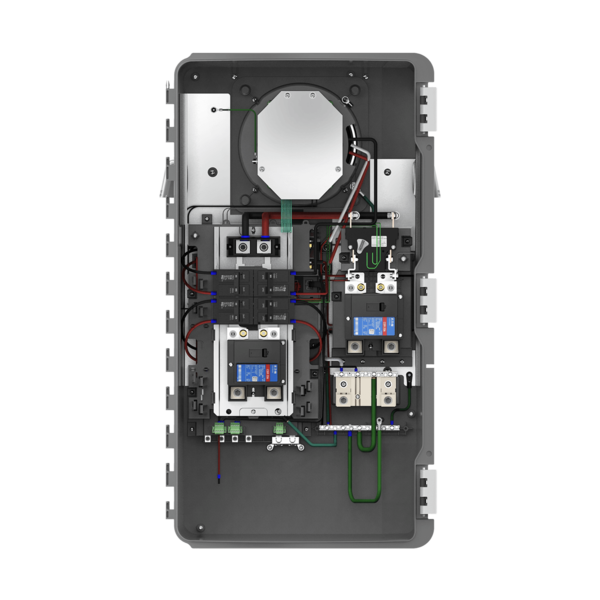

Includes: Neutral-forming Transformer (NFT), Microgrid Interconnect Device (MID), Breakers, & Screws Streamlines Grid-independent Capabilities of PV & Storage Installations
Dimensions: 36 in Height x 19.7 in Width x 9.7 in Depth
Compatibility: IQ Battery, M215 or M250, IQ6 Series Microinverters, IQ7 Series Microinverters
Standards: UL Listed, UL1741, UL1741 SA, UL 1741 SB, UL1741 PCS, UL1998, UL869A5, UL675, UL5085, UL50E5, CSA 22.2 No. 107.1, 47 CFR, Part 15, Class B, ICES 003, AC156, IFETEL
Warranty: 10 Years Limited
