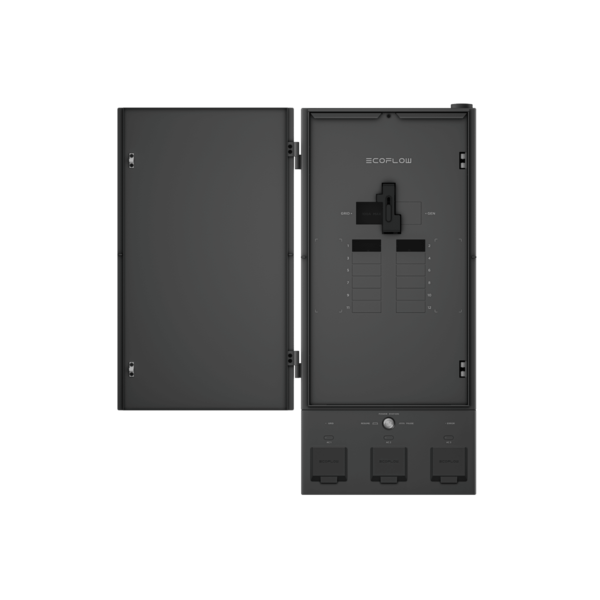

EcoFlow Smart Home Panel 2 EFSmartHomePanel2-US

Integrate the brand new DELTA Pro Ultra inverter + battery into your home's electrical system with the Smart Home Panel 2 for seamless home backup or off the grid system. Control your system with the EcoFlow PowerInsight Home Energy Manager. The Smart Home Panel 2 is also compatible with the EcoFlow DELTA Pro. Connect one DELTA Pro only charges the power station, but connect two DELTA Pro's with an EcoFlow Double Voltage Hub, and they will charge and discharge with a max output of 7200W.

Feature Bullets

• Intelligent subpanel for home battery systems
• 20 ms Auto-switches in an Outage: Automatically switches over your home power connection from the grid. Forget spoiled food and damaged appliances. Embrace uninterrupted power so that life never stops
• EcoFlow App: The EcoFlow App is required to operate the Smart Home Panel 2. An abundance of features allow you to control and customize your energy usage
• Modular Design Fits into Your Home with Ease: The EcoFlow Smart Home Panel 2 is split into two modules- a battery connection box and a distribution panel. Install each separately or together with less wiring and more flexibility to place your batteries
• Extend Your Backup Time: Use the app for circuit-level control pausing unnecessary loads to extend backup time with Circuit Control mode
• Emergency Weather Prep: With automatic Storm Warnings mode, batteries fully recharge 24 hours before an extreme weather event. Locking energy until an outage occurs. The Home Smart Panel 2 monitors the weather hourly, updating the system based on the forecast, offering precise backup strategy
• Data Visualization: Real-time data monitoring and holistic data analysis of your home energy
• Future-proofed Compatibility: Compatible with a large range of power generation sources and will work with future EcoFlow products
• Warranty: You'll also get a 10 year warranty for the Home Smart Panel 2 from EcoFlow and their friendly customer services for whenever you need it

Specifications:

Size: Distribution Panel: 24.8 in x 14.9 in x 6.7 in, Battery Connection Box: 6.9 in x 14.4 in x 4.3 in, Distribution Panel+Battery Connection Box: 32.4 in x 144.9 in x 6.7 in
Wire Diameter: 14-6 AWG (Output), 4 AWG (Generator Access Input)
Input Voltage: 120/240 VAC (Grid Access Input)
Output Voltage: 120/240 VAC
Maximum Input Current: 100 A (Grid Access Input)
Circuit Breaker Current: 100 A Maximum (Grid Access Input), 50 A Maximum (Generator Access Input)
Maximum Input Current: 30 A ((1) Battery Home Backup Access Input)
Input Frequency: 60 Hz (Grid Access Input)
Maximum Gas Generator Input: 12 kW (Generator Access Input)
Maximum Input Power: 7200 W ((1) Battery Home Backup Access Input)
Number of Loads: 12 (Output)
Output Wiring Methods: L1/L2/N/PE
Maximum Operating Altitude: 6561.6 ft
Operating Temperature: -22 to 120 deg F
Storage Temperature: -40 to 158 deg F
Enclosure Rating: Distribution Panel: NEMA TYPE 3R Rainproof, Battery Connection Box: NEMA TYPE 1
Communication Method: Wi-Fi & Bluetooth & Ethernet
Includes: (1) EcoFlow Smart Home Panel 2 (Glass Door and Deadfront Cover Packaged Separately), (1) EcoFlow Power Input/Output Cable, (1) Marking-off Template, (1) Installation Guide, (1) Warranty Card
Standards: TUV, ETL, PV Cycle, MCS, IEC, UL
Warranty: 10 Years
Weight: 39.7 lb Distribution Panel, 7.2 lb Battery Connection Box, 52.9 lb Distribution Panel + Battery Connection Box
