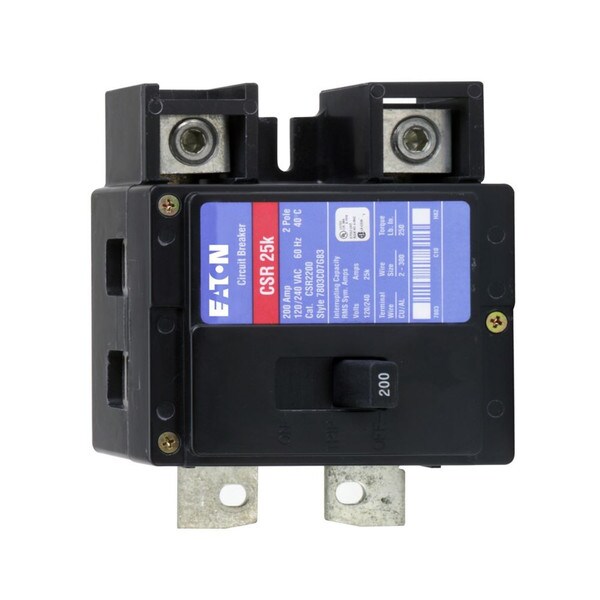

CSR2200N - Eaton Type CSR Standard Circuit Breaker
The Eaton Type CSR Standard Circuit Breaker delivers robust protection and high interrupting capacity for demanding electrical applications. Designed for use in Type ECC unit enclosures, this 200 Amp, two-pole breaker is ideal for single-phase, 120/240V systems.
With a 25kAIC interrupting capacity, the CSR breaker ensures safe operation even in high-fault environments. It supports wire sizes from 2 AWG to 300 Kcmil, offering flexibility for various installation needs. Engineered for compatibility with CH loadcenters, this breaker combines power, reliability, and code-compliant performance.
Key Features:
- 200 Amp, two-pole breaker for single-phase, 120/240V systems
- 25kAIC interrupting rating for high-fault current protection
- Compatible with Type ECC unit enclosures
- Supports wire sizes: 2 AWG to 300 Kcmil
- Designed for use with Eaton CH loadcenters
Choose the Eaton CSR Circuit Breaker for reliable, high-performance protection in residential and light commercial power distribution.
