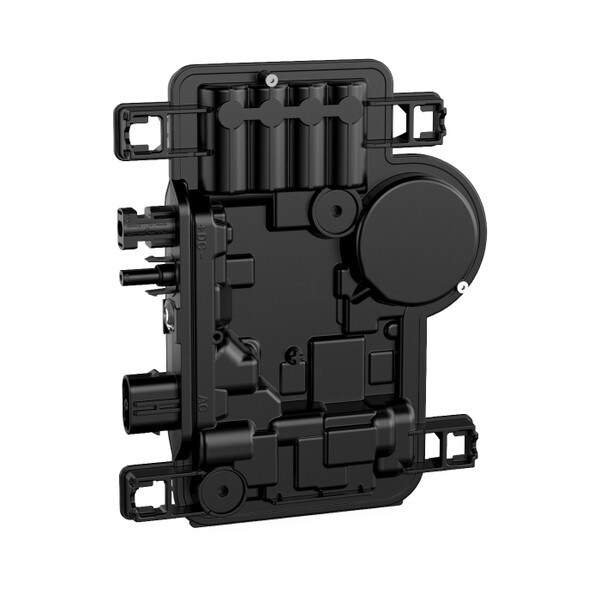

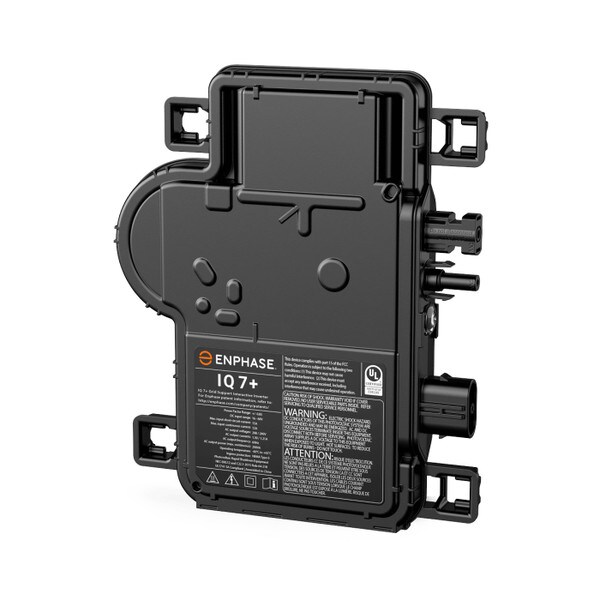

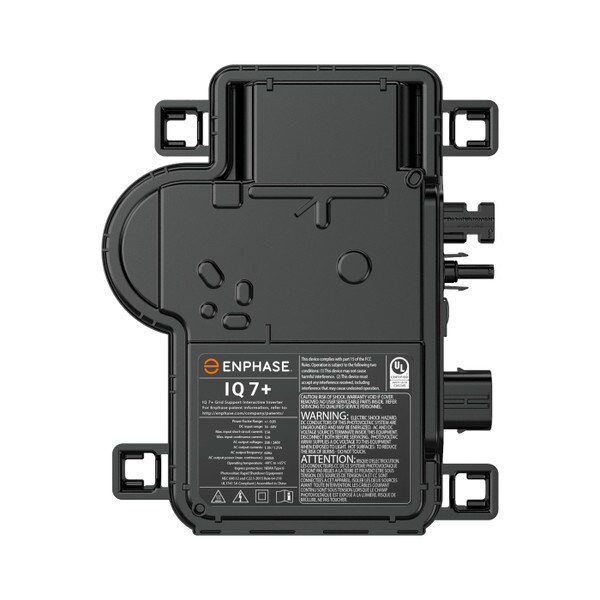

Enphase Energy IQ7Plus Series 295 VA Natural Convection Cooling Microinverter with MC4 Connection

The high-powered smart grid-ready Enphase IQ7+ Microinverter with Integrated MC4 connectors dramatically simplify the installation process while achieving the highest system efficiency. Part of the Enphase IQ System, IQ 7+ Microinverters integrate with the Enphase IQ Envoy, Enphase IQ Battery, and the Enphase Enlighten monitoring and analysis software. IQ Series Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty of up to 25 years.

Feature Bullets

• 97% CEC efficiency
• Faster installation with improved, lighter two-wire cabling
• Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
• Complies with advanced grid support, voltage, and frequency ride-through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for varying grid profiles
• More than a million hours of testing
• Class II double-insulated enclosure

Specifications:

Series: IQ7Plus
Overall Length: 212 mm
Overall Width: 175 mm
Overall Depth: 30.2 mm
Input Voltage: 16-60 V
Power Rating: 295 VA
Input Current: 25 A
Amperage Rating: 1/1.2 A
Efficiency: 97%
Frequency Rating: 60 Hz
Power Factor: 1
Cooling Type: Natural Convection
Temperature Rating: -40 to 65 deg F
Output Voltage: 240/211-264, 208/183-229 V
Connection Type: MC4
