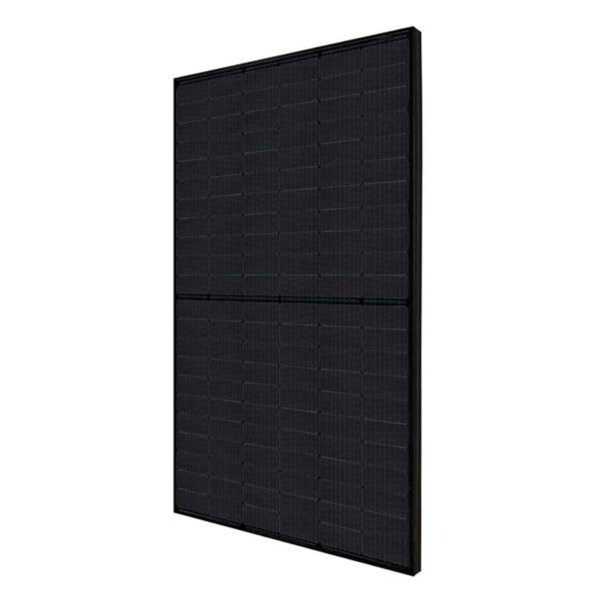

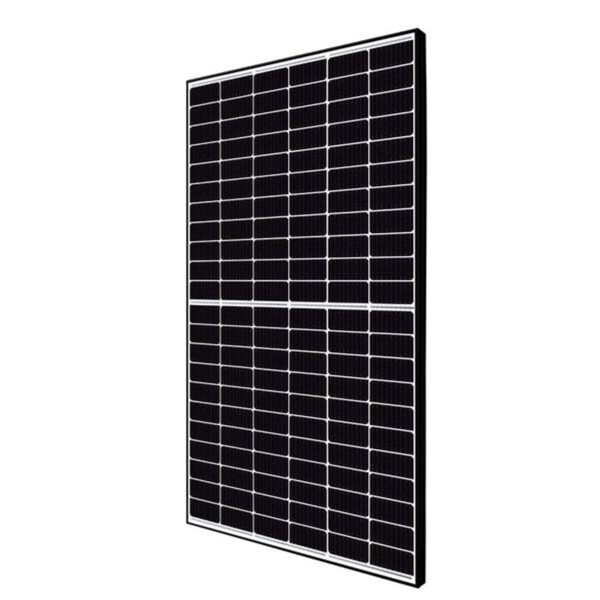

Canadian Solar CS3N-390MS, Pallet of 30 PV Modules, 390W, Black Frame/Black Backsheet, MC4

Canadian Solar's new High Power Dual Cell Mono-PERC Module, with shade tolerant half cell technology and an additional row of cells, breaks the 20% module efficiency barrier without any sacrifices in value or reliability. Reliability has even been improved with LID + LeTID under 2%, for up to 50% lower degradation throughout the life of the module.

Specifications:

Backsheet Color: Black
Connector Type: MC4
Fire Class: Class A
Frame Color: Black
Fused: False
Cells Technology: Half
Operating Current (Imp): 8.48 A
Short-Circuit Current (ISC): 9.18 A
Open-Circuit Voltage (VOC): 41.7 V
NOCT: 41
Operating Voltage: 34.5 V
Maximum String Voltage: 1000 VDC
Module Area Efficiency: 19.2%
Number of Cells: 132
Power Output Tolerance: 10 W
Power Rating: 390 W
Fuse Rating: 20 A
Static Load Rating: 113
Voltage Temperature Coefficient: 0.26 cv
Standards: TUV, ETL Listed, PV Cycle, MCS, IEC, UL Listed
Warranty: 25 Years
