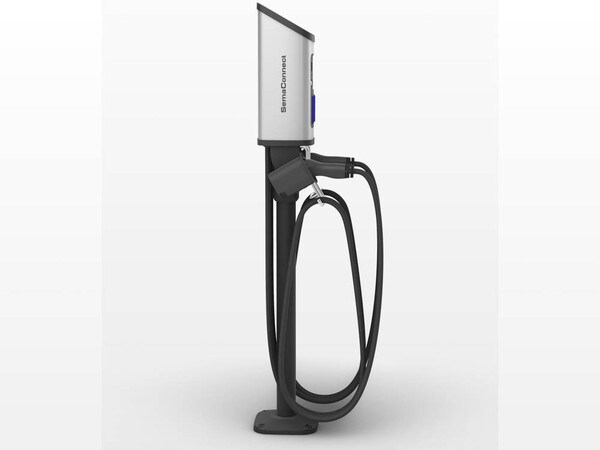

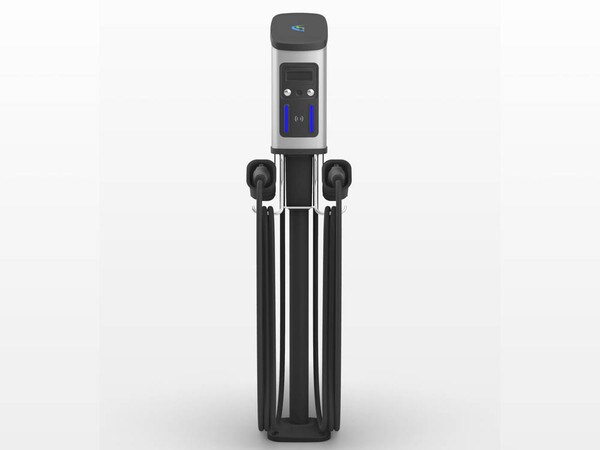

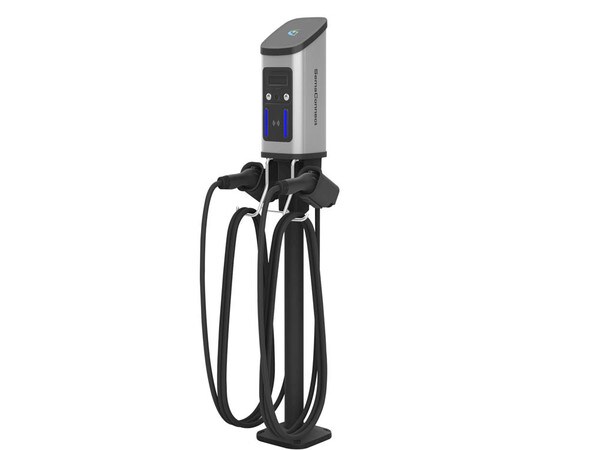

Blink Series 7+ Station - W/ 18FT CRD
Details
The Blink Series 7 charging stations are powerful enough to charge your fleet or multi-unit property. They are fast Level 2 AC chargers featuring up to 80 amps of power to get your vehicles on the road quickly. With a dual-port design, the Blink Series 7 allows two vehicles to charge simultaneously on the Universal J1772 plugs – able to charge all-electric or plug-in hybrid EVs (Tesla vehicles require an adapter). The NEMA 3R outdoor-rated enclosure allows flexible installation options, indoors or outdoors, with a compact form that allows for ideal placement, mounted on a wall or pedestal. Standard 18-foot charging cables (or the optional 25-foot upgrade) can reach around any vehicle or between parking spaces. When connected to the Blink Network over 4G LTE they are unlocked to allow for advanced charger management capabilities such as the groups feature with customized charging policies, remote monitoring with 99% uptime, and 24/7 customer support for employees or residents.
ELECTRICAL SPECIFICATION AC OUTPUT Number of Ports | 48 A Two |
| Current | Configurable up to 48A Max per port |
| Power | Up to11.52 kW (@240VAC) or 9.984kW (@208VAC) Max per port |
| Energy Metering Accuracy | +/- 1% |
| Charging Connector | SAE J1772 |
| ELECTRICAL SPECIFICATION – AC INPUT | |
| Input Connector | Hardwired |
| Voltage | 208 or 240VAC |
| Service PanelBreaker | Two-pole common trip 60A breaker,dedicated circuit per port |
| Power Connection | Line 1, Line 2 and GND (no neutral) per port |
| Standby Power | 3.46 W Typical |
| SAFETY SPECIFICATION | |
| Safety, GroundFault Circuit Interrupt | 20ma CCID with auto retry (every15 seconds) |
| Automatic Plug-OutDetection | Power terminated per SAE J1772 spec |
| Surge Protection | 6kV @3,000a |
| NETWORK SPECIFICATION | |
| Data Communication | Cellular 4G LTE |
| Charging Infrastructure Communication | OCPP 1.6 compliant |
| Remote Management | Remote access, diagnostics, Over-The-Air (OTA) software update enabled |
| Load Management | Smart, dynamicallocation and distribution of power to each port |
| USER INTERACTION SPECIFICATION | |
| Charging StatusIndicator | High visibility, multi-color LED visual statusindication |
| Display | LCD Screen - 4 lines, 20 characters per line |
| Authentication | RFID: ISO14443 Type A &B, MiFare, Felica,ISO15693 |
| ENVIRONMENTAL SPECIFICATION | |
| Enclosure | Aluminum, NEMA 3R certified |
| Operating Humidity | Up to 95% non-condensing |
| Operating Temperature | -30 degree C to +50 degree C ambient |
| Operating Altitude | ≤6560 ft |
| MECHANICAL SPECIFICATION | |
| Dimensions | Charging Head: 20.5” H x 7.4” W x 7.4” D |
| Approximate Weights | Charging Head: 21 lbs. | Pedestal: 12.5 lbs. | Wall mount bracket: 11.5 lbs. |
| Mounting Option | Wall or Pedestal mount |
| Cable Length | 18 ft standard, 25 ft optional |
| Cable Management System | Optional |
| REGULATION | |
| Safety | UL 2594 / CSA C22.2 No. 280-16 | UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12 certified |
| EMI | FCC Part 15 Class A compliant |
| Energy Efficiency | Energy Star certified |
| Compliance | California Type Evaluation Program (CTEP) certified, Buy American ACT (BAA) compliant |
| Accessibility | ADA compliant |
