BYD Solar Battery Module B-Plus-H 2.56kWh

(0)No Reviews yet
WEIGHT: 90 lbs
DIMENSION: 23.22" x 48.42" x 13.78"

This item is IN STOCK

Current Stock: 4


The battery for all applications - in direct High Voltage


  • From 5.1 kWh to 10.2 kWh
  • 200 - 450 V to use as high-voltage battery
  • Emergency-backup through high power
  • Maximum efficiency thanks to real series connection
  • Lithium iron phosphate Battery: Maximum security, cycle-stability and power
  • Patented wireless plug-in design
  • 1 and 3 phase systems
  • Technical Datasheet | Download

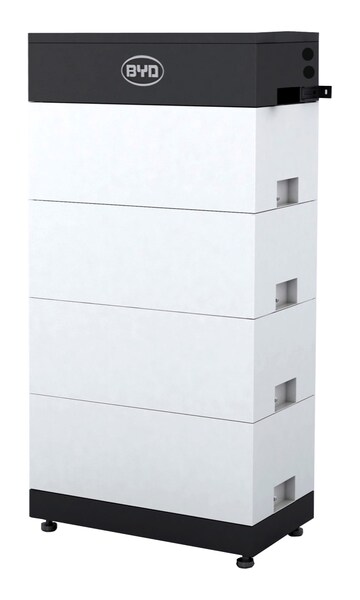

Battery-Box HV

The BYD Battery-Box is a lithium battery with battery control unit (BCU) for usage with an external inverter. The flexible battery system provides maximum safety, lifetime and performance, which makes it the perfect battery for all applications.

Battery-Box from BYD is the next generation of residential storage. Safe LiFePO4 battery chemistry and modular product design make installation simple. Pair up to (4) B-Plus-H 2.56kWh units with each Base+BCU for up to 10.24kWh battery capacity.

Manufacturers Part Number: B-Plus-H-2.56
B-Plus-H 2.5 HV Battery Module

BYD Battery 2.56kWh lithium iron phosphate (LiFePO4) battery module. Two to four of these modules can be used in conjuction with BYD BCU.

B-Box H5.0 (5.12 kWh): 2 battery modules
B-Box H7.5 (7.68 kWh): 3 battery modules
B-Box H10.0 (10.24 kWh): 4 battery modules
The Battery-Box HV is the first real high voltage battery that comes with a flexible and modular design with no cables inside. One Battery-Box HV contains 2 to 4 battery modules B-Plus H 2.5 in series connection and reaches up to 10.2 kWh usable capacity.
