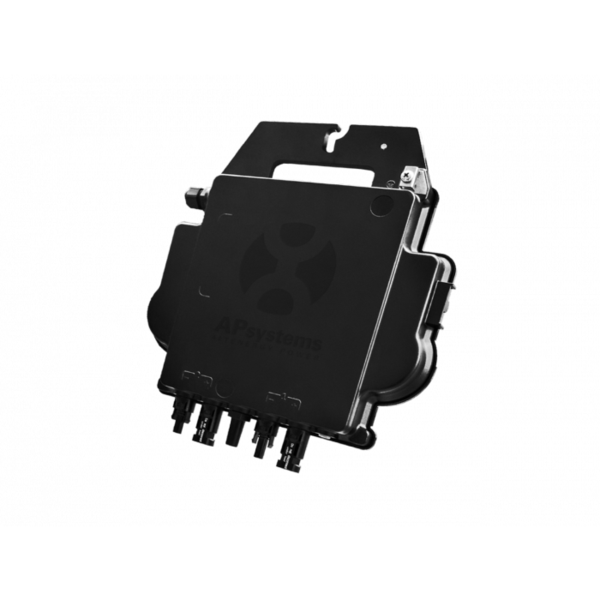

AP Systems DS3-L Dual Microinverter 768VA (SKU Part Number DS3-L-NA-768VA)

APsystems 3rd generation of dual microinverters are reaching unprecedented power outputs of 640VA (DS3-S), 768VA (DS3-L) or 880VA (DS3) to adapt to today's larger power module. With 2 independent MPPT, encrypted ZigBee signals, the DS3-S, DS3-L and DS3 benefit from an entirely new architecture and are fully backwards compatible with the QS1 and YC600 microinverters. The innovative and compact design make the product lighter while maximizing power production. The components are encapsulated with silicone to reduce stress on the electronics, facilitate thermal dissipation, enhance waterproof properties, and ensure maximum reliability of the system via rigorous testing methods including accelerated life testing. A 24/7 energy access through Apps or web based portal facilitate remote diagnosis and maintenance. The DS3 series is interactive with power grids through a feature referred to as RPC (Reactive Power Control) to better manage photovoltaic power spikes in the grid. With a performance and an efficiency of 97%, a unique integration with 20% less components, APsystems DS3-S, DS3-L and DS3 are a game changer to residential and commercial PV. APsystems' 3rd generation of dual-module microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today's high-capacity PV modules. The DS3 series reaches unprecedented levels of power output. It features 2 input channels, each with independent MPPT, and encrypted wireless ZigBee communication. An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations. A 24/7 energy access through apps or web based portal facilitate remote diagnosis and maintenance. The DS3 series is grid-interactive and fully compliant with CA Rule 21 requirements. With its unparalleled performance, efficiency of 97.3%, and increased reliability, the APsystems DS3 series is a gamechanger for residential and commercial solar.

Feature Bullets

• One microinverter connects to two solar modules
• Max output power reaching 768VA
• Two independent input channels (MPPT)
• CA Rule 21 (UL 1741 SA) compliant
• NEC 2020 690.12 Rapid Shutdown Compliant
• Encrypted Wireless ZigBee Communication
• Phase Monitored and Phase Balanced

Specifications:

Series/Model: DS3
Dimensions: 10.3 in Width x 8.6 in Height x 1.6 in Height
Recommended PV Module Power (STC) Range: 265 Wp - 570 Wp+ - (Input Data (DC))
Peak Power Tracking Voltage: 28-45 V - (Input Data (DC))
Operating Voltage: 16-60 - (Input Data (DC))
Maximum Input Voltage: 60 V - (Input Data (DC))
Maximum Input Current: 18 A x 2 - (Input Data (DC))
Maximum Input Short-Circuit Current: 22.5 A Per Input - (Input Data (DC))
Maximum Continuous Output Power: 768 VA - (Output Data (DC))
Nominal Output Voltage: 240/211-264 V - (Output Data (DC))
Nominal Output Current: 3.2 A - (Output Data (DC))
Maximum Output Fault Current (AC) & Duration: 5.691 Apk, 26.75 ms of Duration; 3.307 Arms - (Output Data (DC))
Nominal Output Frequency: 60/58.8 Hz - 61.2 Hz (HECO: 57 Hz - 63 Hz) - (Output Data (DC))
Power Factor (Default/Adjustable): 0.99/0.8 Leading to 0.8 Lagging - (Output Data (DC))
Maximum Units Per 30 A Branch: 7 - (Output Data (DC))
Maximum Units Per 20 A Branch: 5 - (Output Data (DC))
AC Bus Cable: 10 AWG/12 AWG - (Output Data (DC))
Peak Efficiency: 97.3%
CEC Efficiency: 97%
Nominal MPPT Efficiency: 95%
Night Power Consumption: 20 mW
Operating Ambient Temperature: -40 to 149 deg F
Storage Temperature: -40 to 185 deg F
DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
Cooling: Natural Convection - No Fans
Enclosure Rating: Type 6
Communication (Inverter To ECU): Encrypted ZigBee
Isolation Design: High Frequency Transformers, Galvanically Isolated
Energy Management: Energy Management Analysis (EMA) System
Standards: Safety & EMC Compliance: UL1741; CSA C22.2 No. 107.1-16; UL1741SA; UL1741SB; IEEE1547; Rule 21; SRD-V2.0; FCC Part15; ICES-003; NEC2014&NEC2017&NEC2020 Section 690.11 DC Arc-Fault circuit Protection; NEC2014&NEC2017&NEC2020 Section 690.12 Rapid Shutdown of PV systems on Buildings
Warranty: 10 Years Standard ; 25 Years Optional
Weight: 5.7 lb
